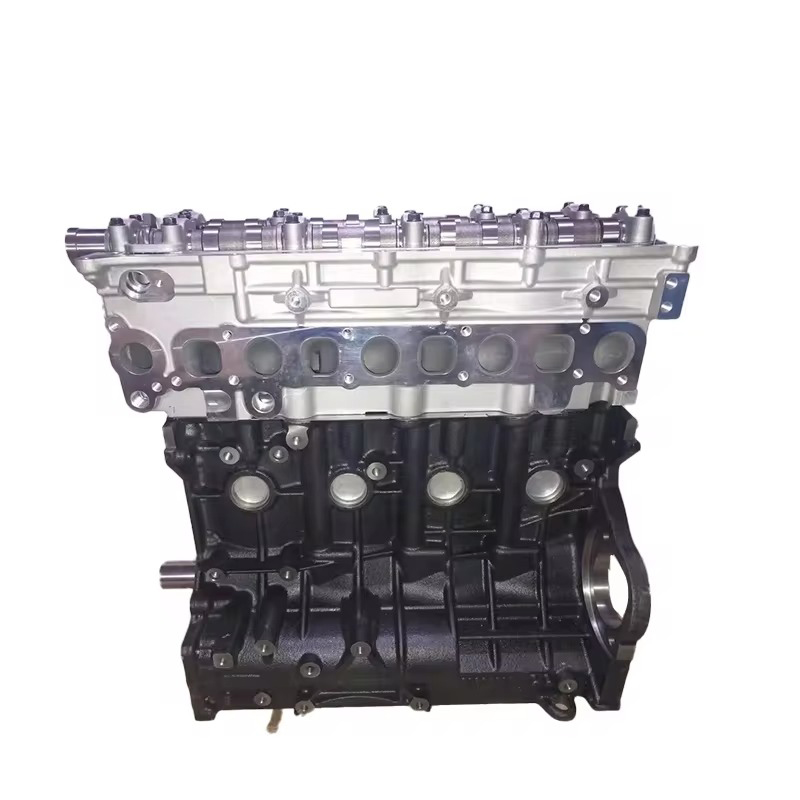

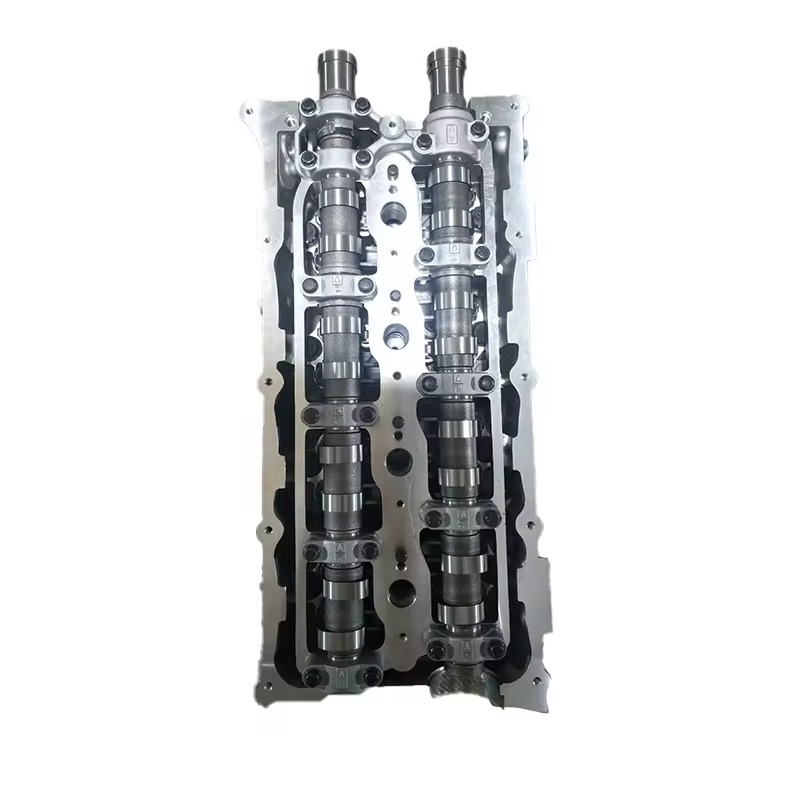

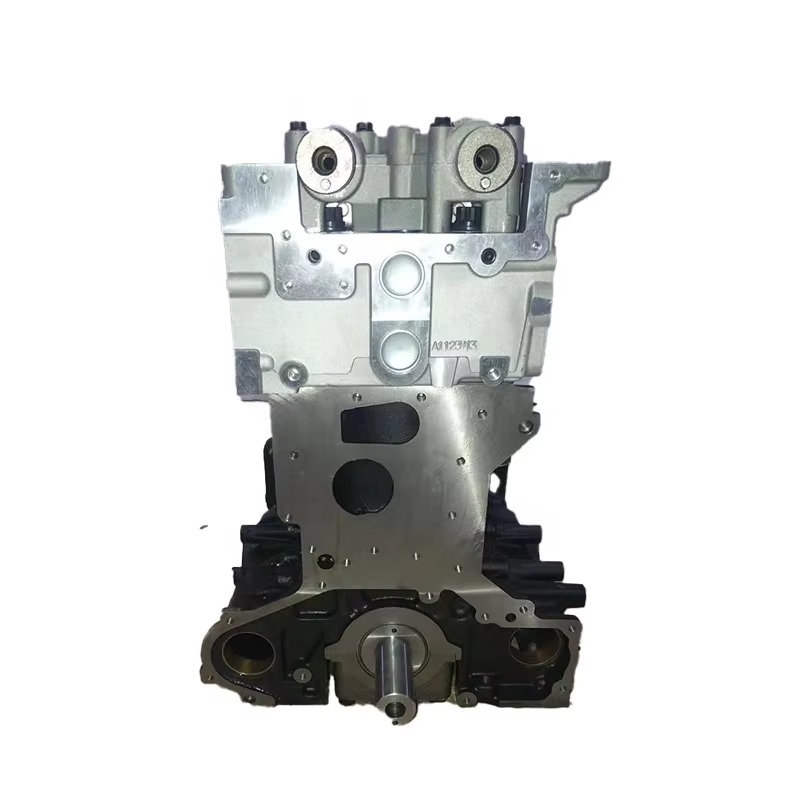

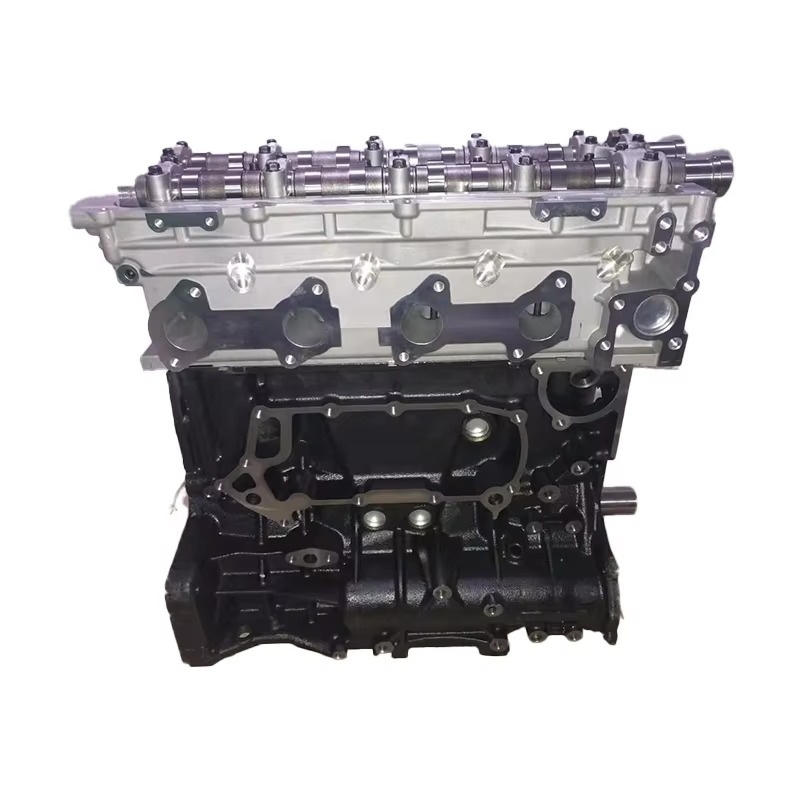

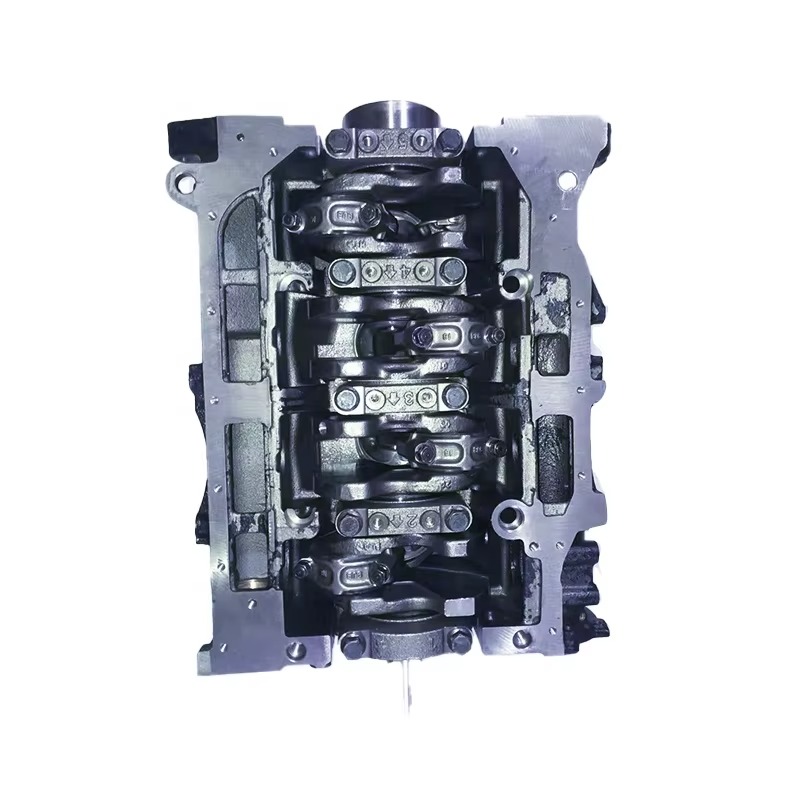

Car Motor Hyundai D4BH 2.5T Engine Parts For Hyundai Galloper Starex Terracan Auto Accesorios Factory Original engine
The 2.5-liter Hyundai D4BH diesel engine has been assembled by the Korean concern since 1997 and is known from the Galloper and Terrakan SUVs, as well as the H1 and Starex minibuses. This power unit was a clone of the Mitsubishi 4D56 turbocharged diesel engine with an intercooler.
In 1997, a turbocharged engine with an intercooler appeared in the Hyundai diesel family, which in fact was only a clone of the well-known Mitsubishi 4D56 prechamber turbodiesel. There is a cast-iron cylinder block with an aluminum 8-valve head without hydraulic lifters, a timing belt drive and a fuel pump belt drive, as well as a block of a pair of balancers with its own belt. Turbines were installed on it differently, but most often Mitsubishi TD04-11G-4 or Garrett GT1749S.
This diesel engine has a huge number of models and modifications, many of which differ significantly.
This family also includes diesels: D4BA, D4BB and D4BF.
Please email or add business whatsapp for a quote.
The HYUNDAI D4BH engine was installed on:
- For Hyundai Galloper 2 (JK) in 1997 – 2003;
- For Hyundai Starex 1 (A1) in 1997 – 2007;
- For Hyundai Terracan 1 (HP) in 2001 – 2006.
| Production years | since 1997 |
| Displacement, cc | 2477 |
| Fuel system | prechambers |
| Power output, hp | 100 – 105 |
| Torque output, Nm | 225 – 240 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 91.1 |
| Piston stroke, mm | 95 |
| Compression ratio | 21 |
| Hydraulic lifters | no |
| Timing drive | belt |
| Turbocharging | yes |
| Recommended engine oil | 5W-40, 10W-40 |
| Engine oil capacity, liter | 7.2 |
| Fuel type | diesel |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Hyundai Starex 2005)— city— highway— combined | 12.4-8.9-9.9 |
| Engine lifespan, km | ~450 000 |
| Weight, kg | 226.8 |
