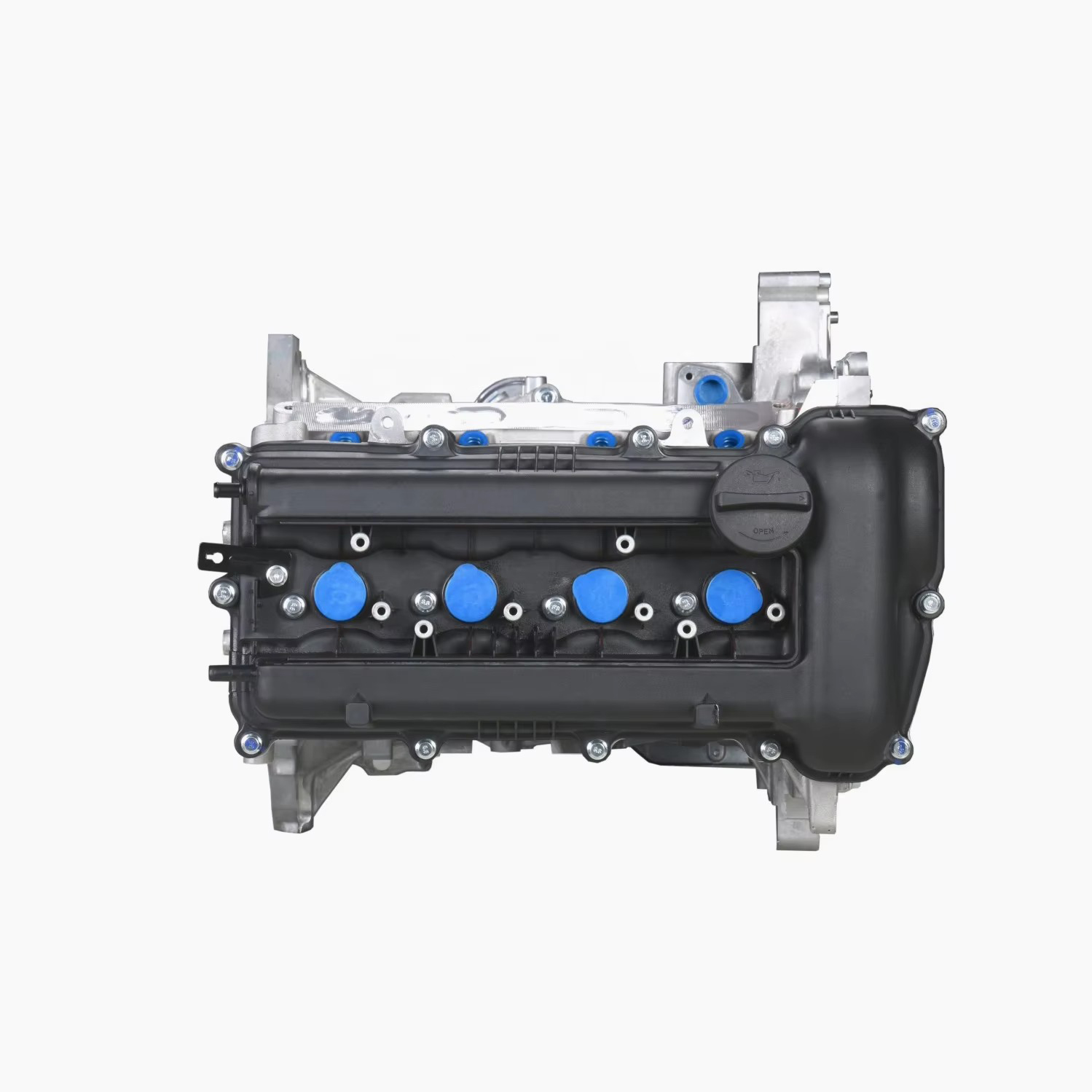

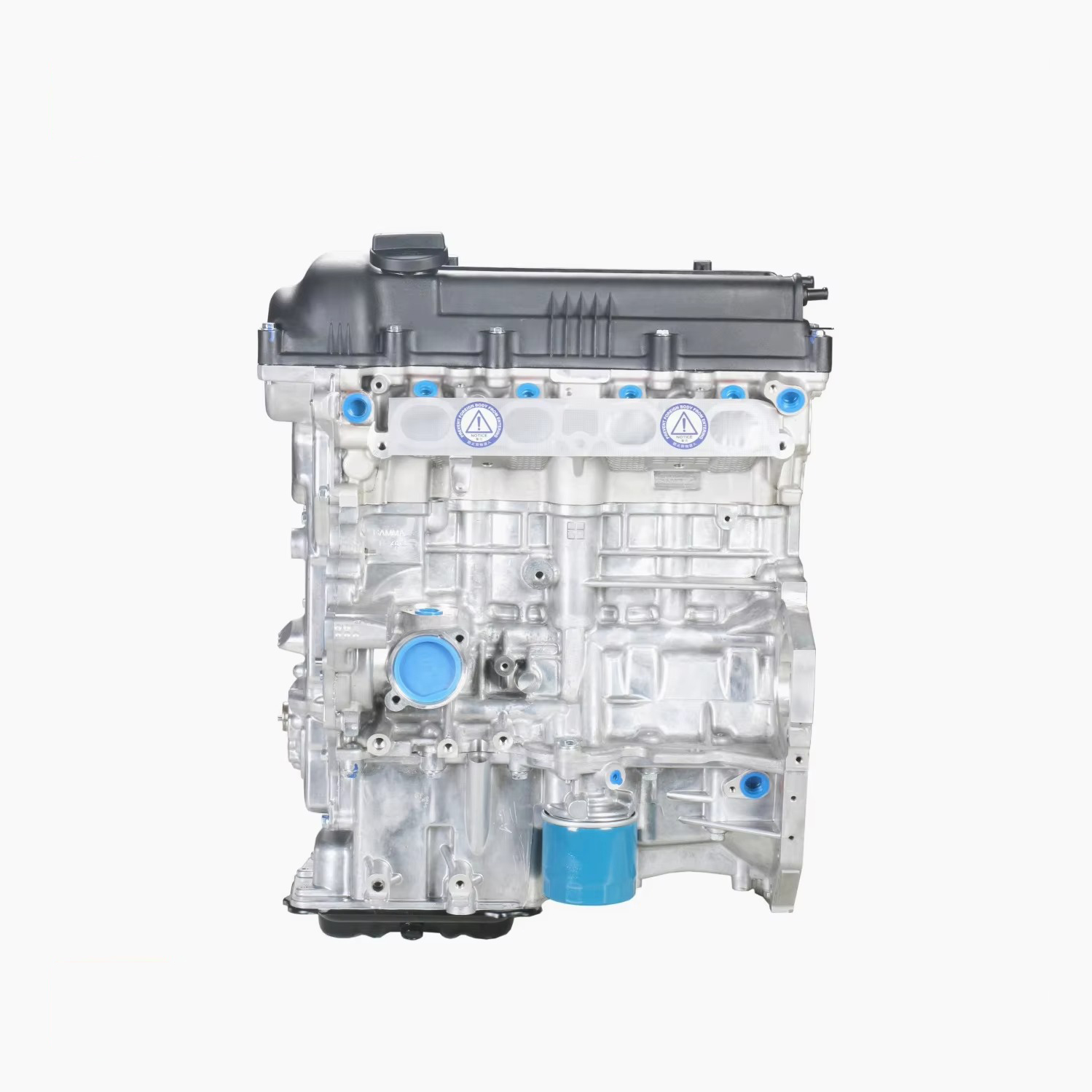

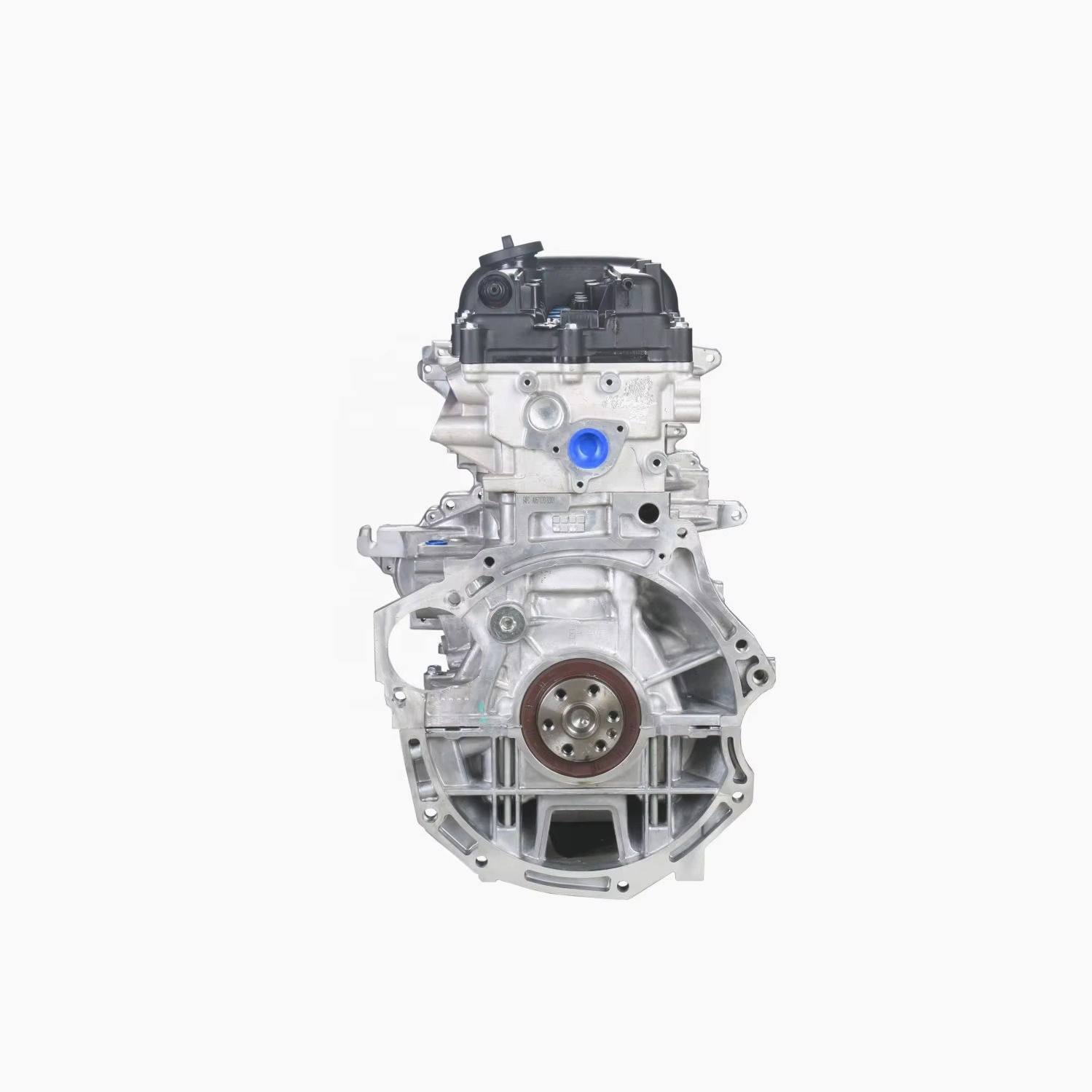

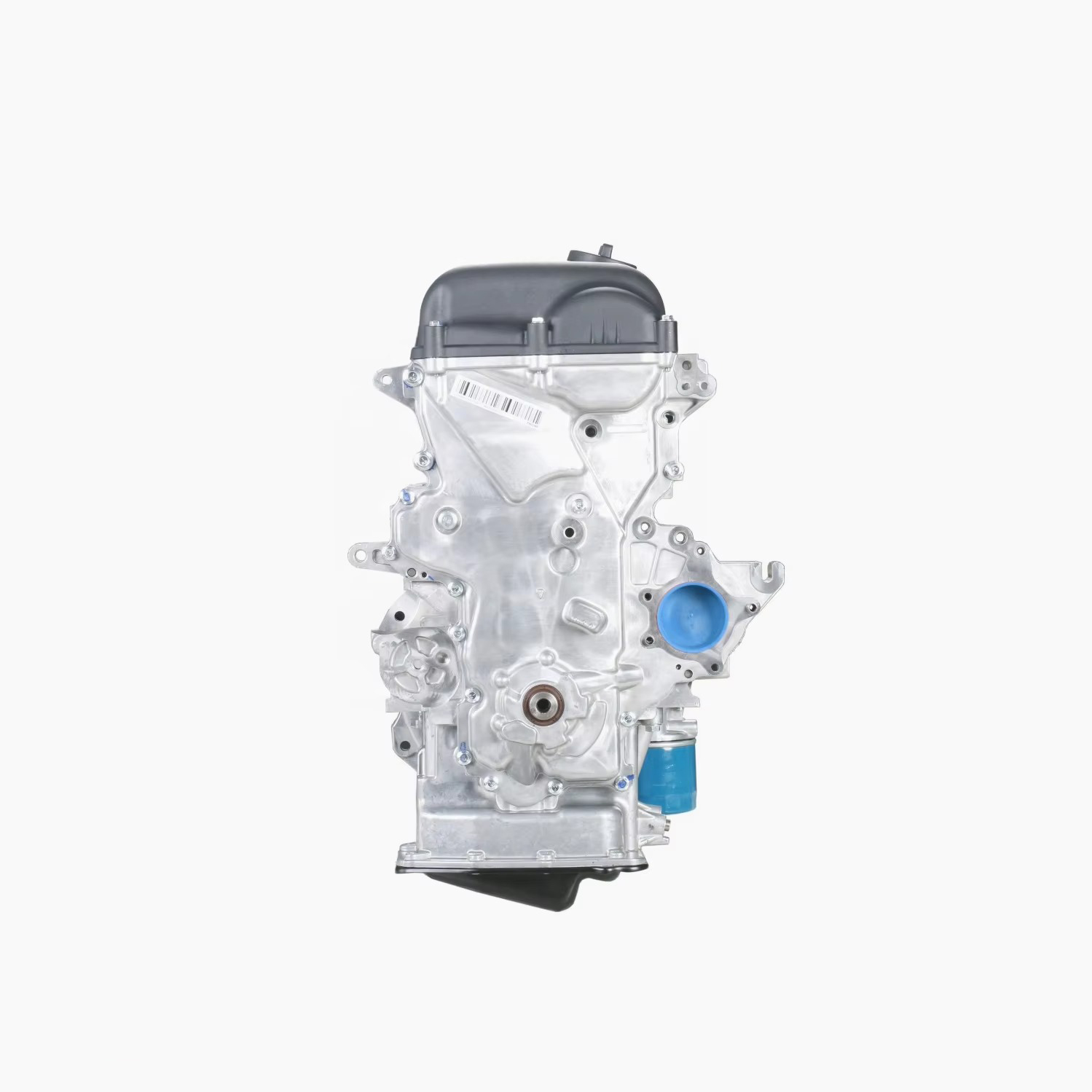

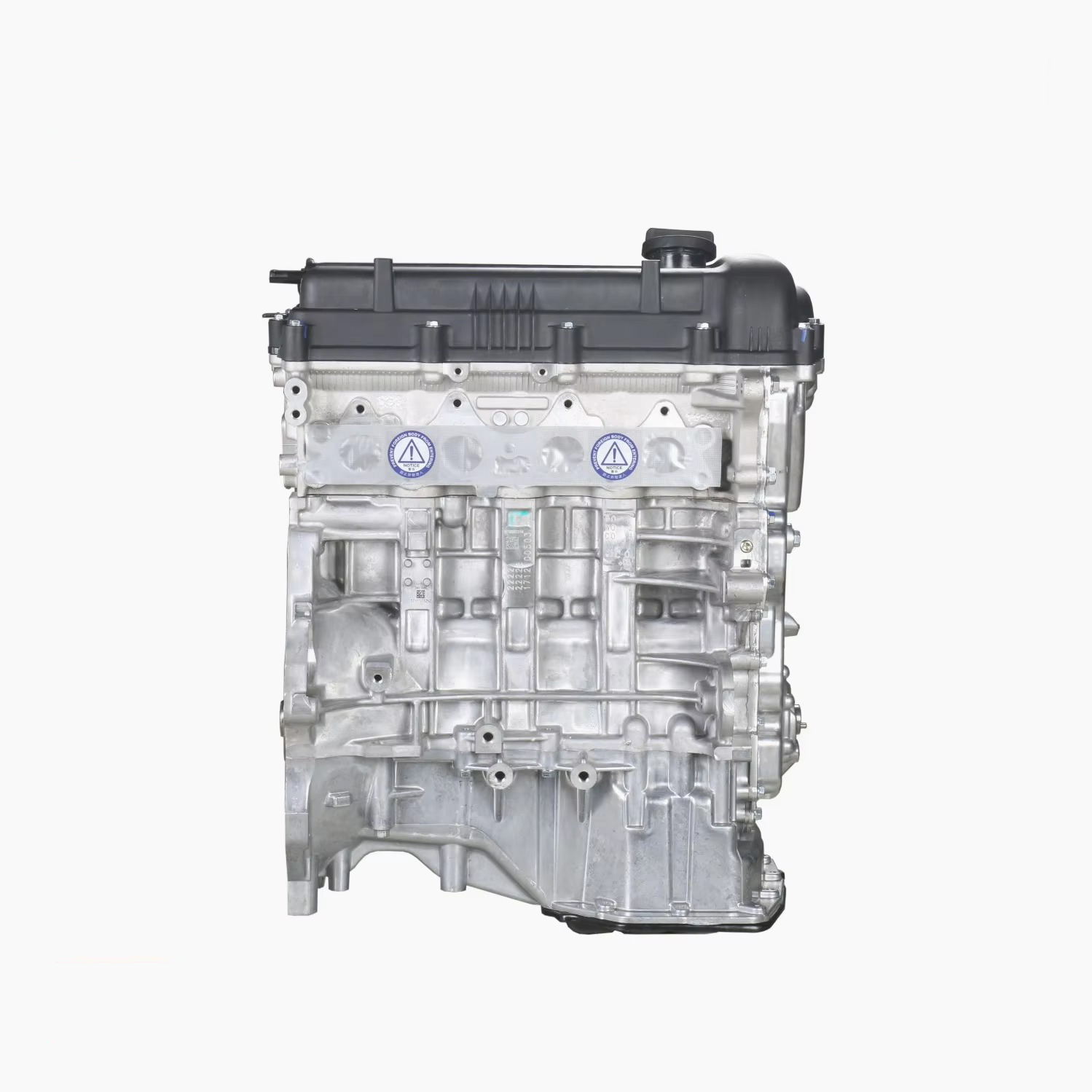

Hyundai G4FA 1.4L 4 Cylinders Motor Original Auto Engine Systems For Hyundai i20 i30 Solaris Ceed Rio Car Accessoires
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
In 2006, a 1.4-liter unit debuted on the new Ceed model for the European market. By design, this is a typical motor with an aluminum block, an open cooling jacket, an aluminum 16-valve cylinder head without hydraulic lifters, and a timing chain with a hydraulic tensioner. Fuel injection is distributed here, and there is a phase regulator on the intake camshaft. This unit is equipped with a plastic intake manifold without a geometry change system.
During production, the engine has been modernized more than once, and the main update is the replacement of a huge “ram’s horn” exhaust manifold with a regular small catalytic converter. It was after this that the unit began to lift up due to the ingress of catalyst crumbs into the cylinders.
Please check shipping via WhatsApp before ordering
The HYUNDAI G4FA engine was installed on:
- Hyundai Accent 4 (RB) in 2010 – 2018;
- Hyundai i20 1 (PB) in 2008 – 2014;
- Hyundai ix20 1 (JC) in 2010 – 2019;
- Hyundai i30 1 (FD) in 2007 – 2012; i30 2 (GD) in 2011 – 2015;
- Hyundai Solaris 1 (RB) in 2010 – 2017;
- Kia Ceed 1 (ED) in 2006 – 2013; Ceed 2 (JD) in 2012 – 2015;
- Kia ProCeed 1 (ED) in 2007 – 2010;
- Kia Rio 3 (QB) in 2011 – 2017; Rio 3 (UB) in 2011 – 2017;
- Kia Venga 1 (YN) in 2009 – 2019.
| Production years | since 2006 |
| Displacement, cc | 1396 |
| Fuel system | distributed injection |
| Power output, hp | 99 – 109 |
| Torque output, Nm | 135 – 137 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 75 |
| Compression ratio | 10.5 |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 3.7 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Hyundai Solaris 2012)— city— highway— combined | 7.6-4.9-5.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 99.5 |
