- OEM Hyundai G4KA 2.0L 4 Stroke Gasoline Engine For Hyundai Sonata Kia Carens Rondo Auto parts Original Engine

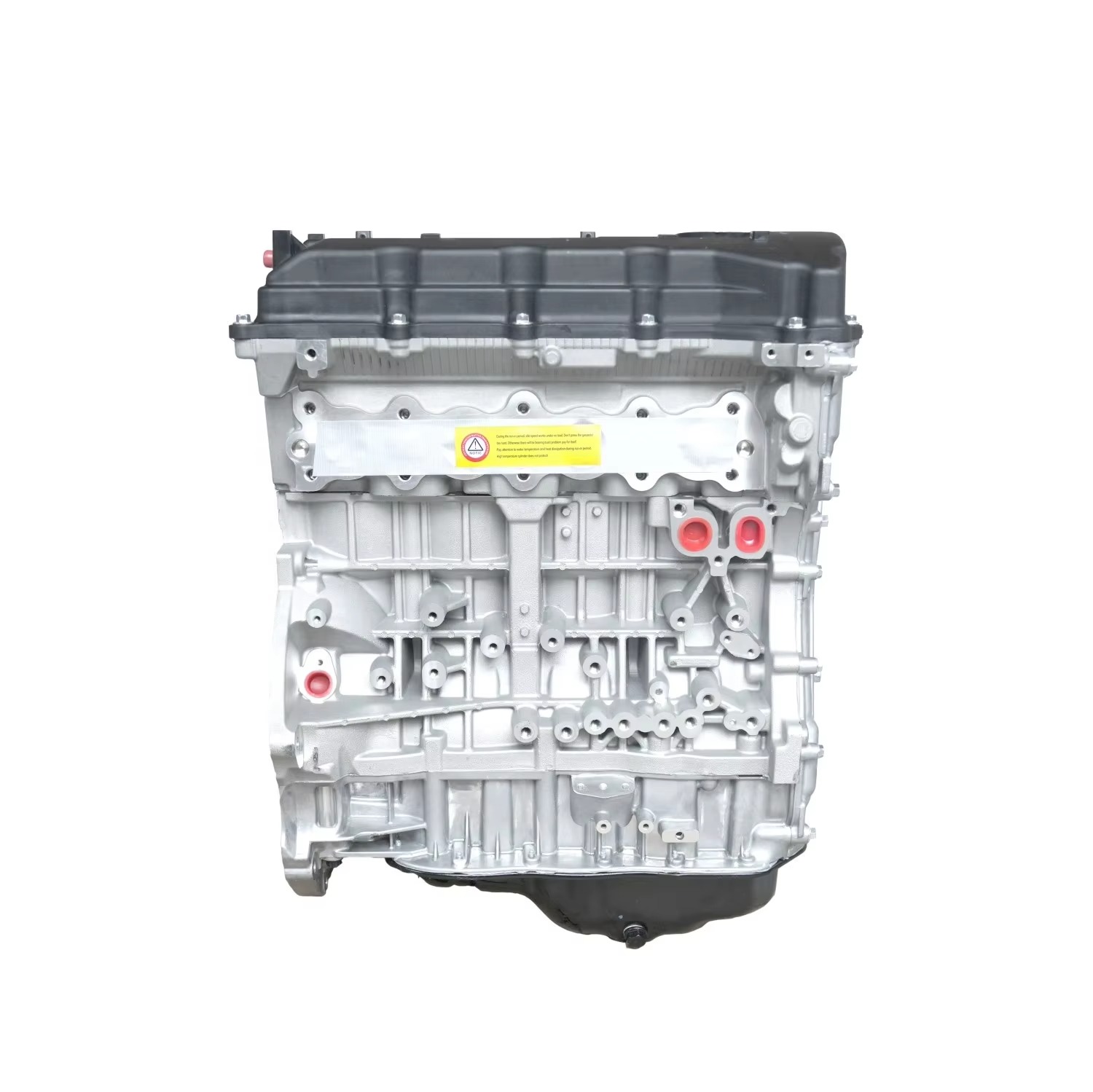

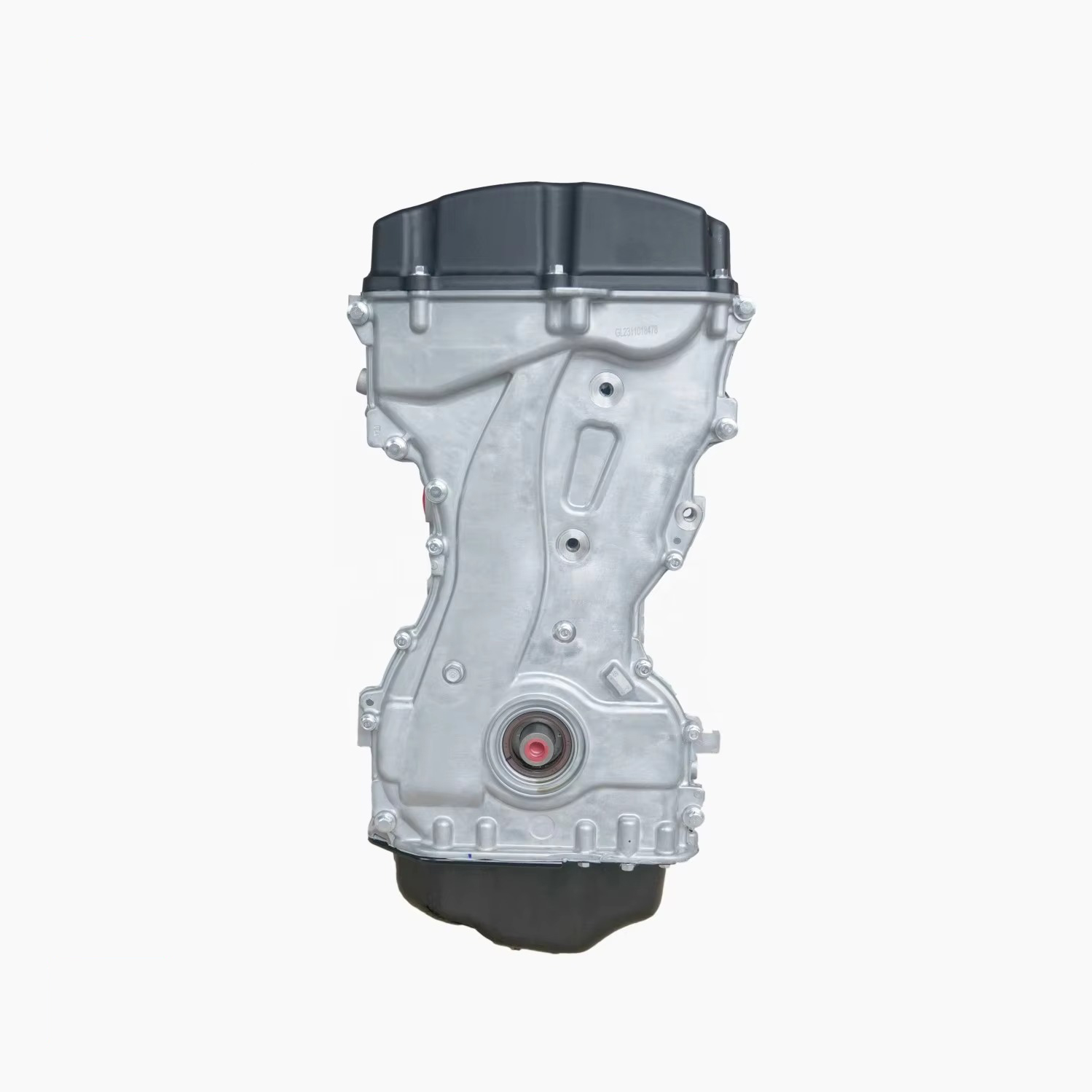

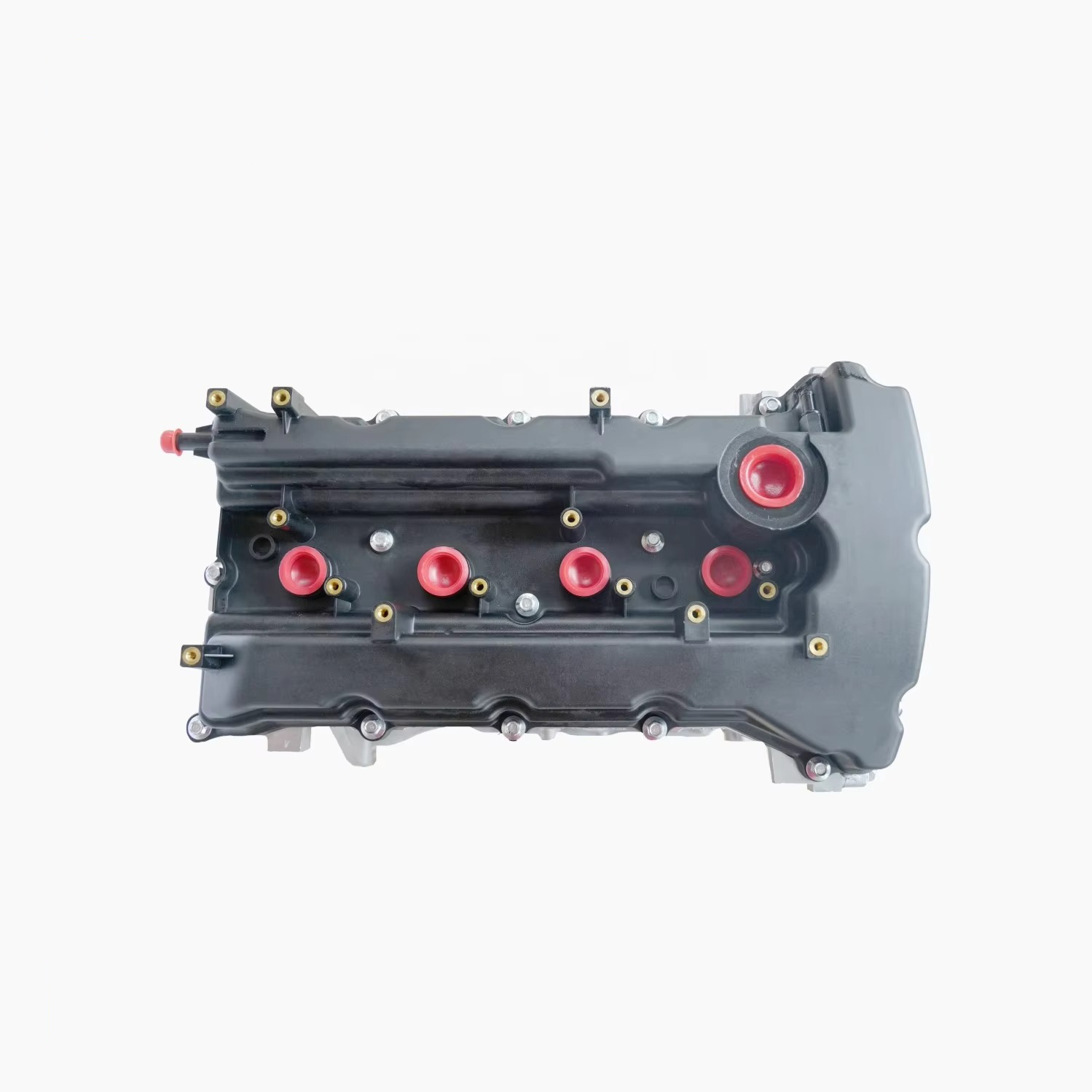

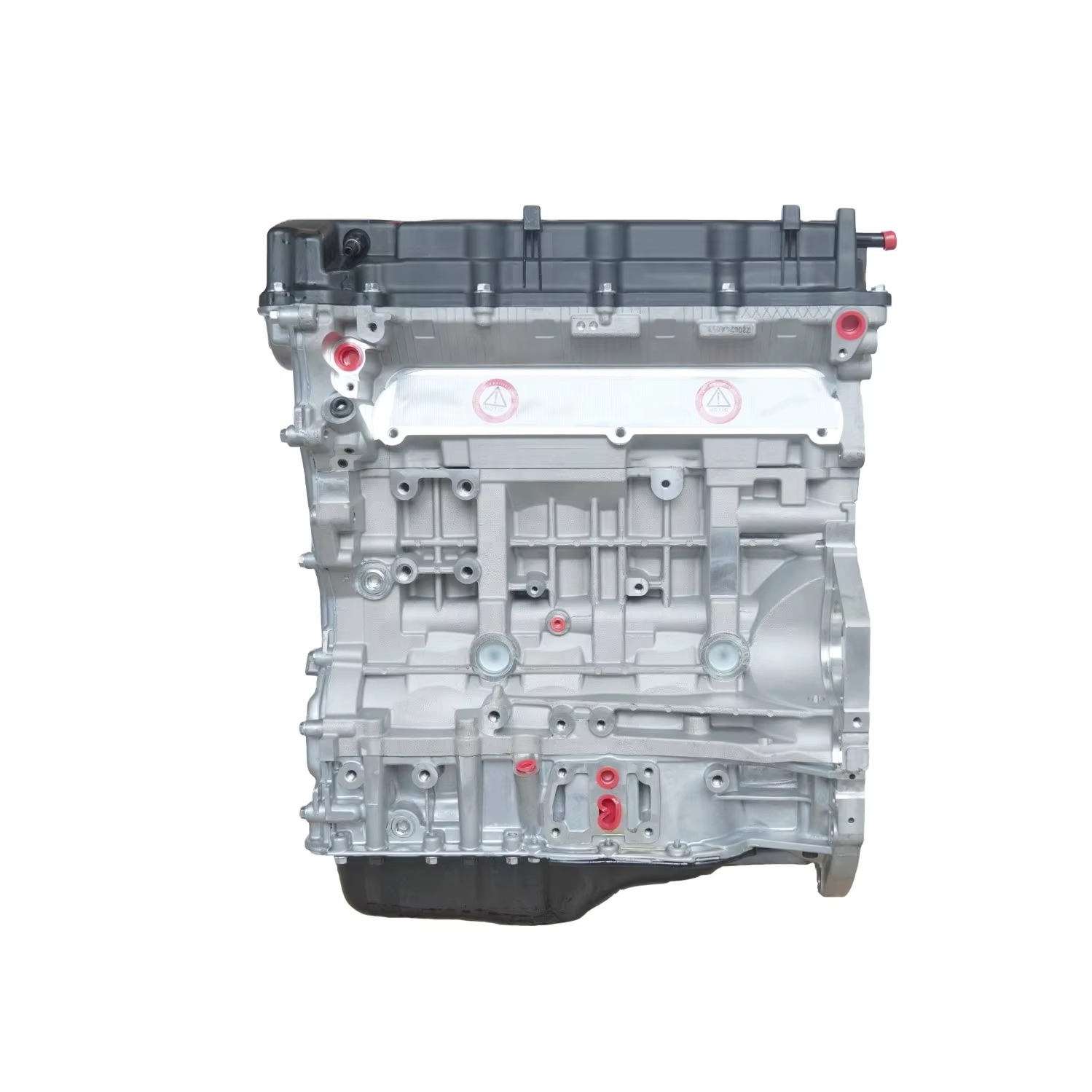

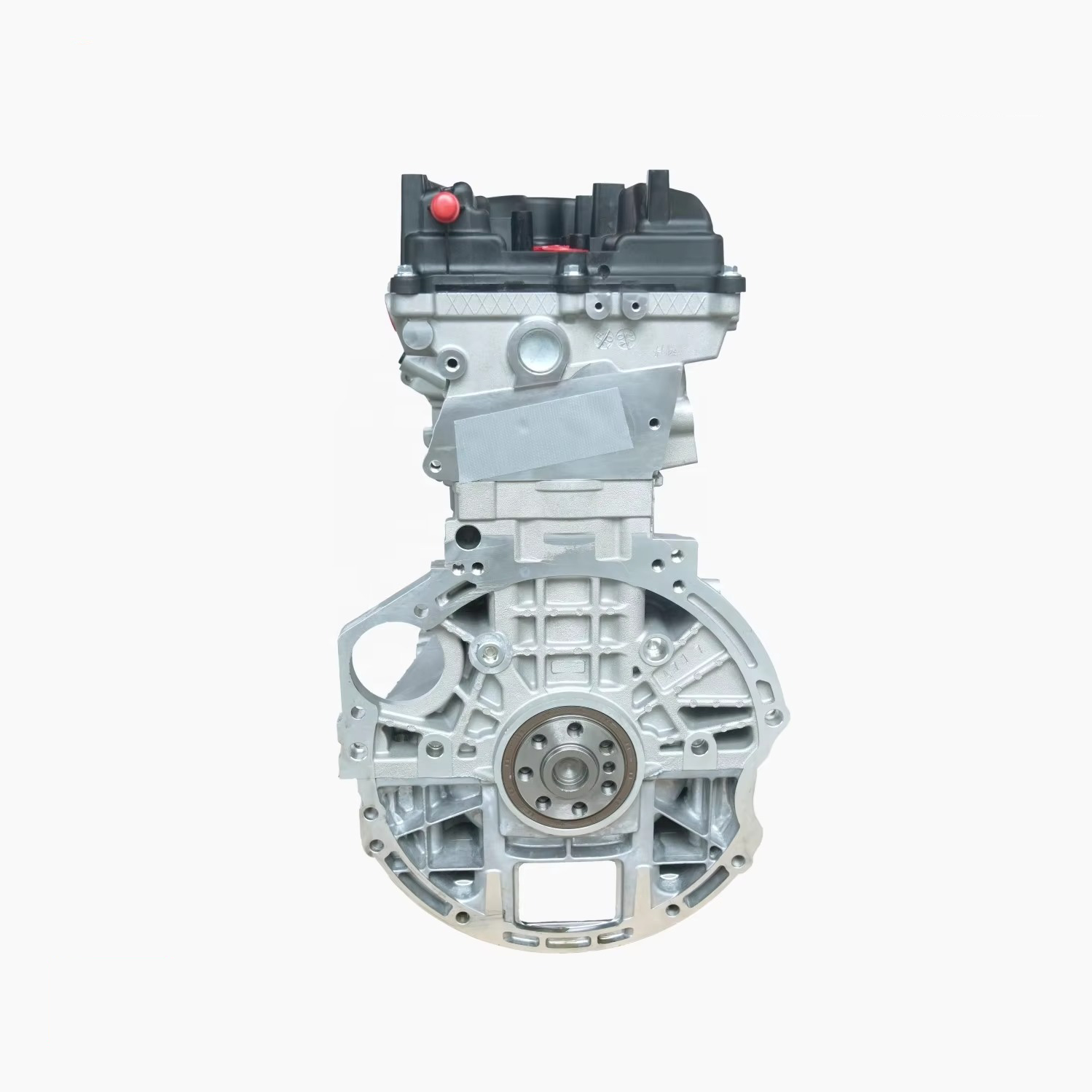

OEM Hyundai G4KA 2.0L 4 Stroke Gasoline Engine For Hyundai Sonata Kia Carens Rondo Auto parts Original Engine
The 2.0-liter Hyundai G4KA gasoline engine was produced from 2005 to 2013 and was installed on several well-known models of the Korean concern, such as the Sonata, Magentis, and Carens. There was a gas modification of this motor for taxi companies under its own index L4KA.
In 2002, the Global Engine Alliance was created by Hyundai-Kia, Mitsubishi, and Chrysler Group, and two years later a whole series of gasoline internal combustion engines of similar design was introduced. 2.0-liter units received the Hyundai-Kia G4KA, Mitsubishi 4B11 or Chrysler ECN indices. They have distributed fuel injection, an aluminum cylinder block with cast-iron liners and an open cooling jacket, a 16-valve cylinder head without hydraulic lifters, a timing chain drive, and a CVVT-type variable valve timing system on the intake camshaft.
In the Asian market, a gas version of the engine received distribution under the L4KA index, which was distinguished by the absence of an inlet phase regulator and a camshaft position sensor. Also, a number of modifications of this motor, for example for Kia Carens, are equipped with a block of balancers.
Please check shipping via WhatsApp before ordering
The Car Motor G4KA was installed on:
- Hyundai Sonata 5 (NF) in 2004 – 2010;
- Kia Carens 3 (UN) in 2006 – 2013;
- Kia Magentis 2 (MG) in 2005 – 2010.
Production years | 2005-2013 |
Displacement, cc | 1998 |
Fuel system | distributed injection |
Power output, hp | 144 – 151 |
Torque output, Nm | 187 – 194 |
Cylinder block | aluminum R4 |
Block head | aluminum 16v |
Cylinder bore, mm | 86 |
Piston stroke, mm | 86 |
Compression ratio | 10.5 |
Hydraulic lifters | no |
Timing drive | chain |
Phase regulator | CVVT |
Turbocharging | no |
Recommended engine oil | 5W-30, 5W-40 |
Engine oil capacity, liter | 4.7 |
Fuel type | petrol |
Euro standards | EURO 3/4 |
Fuel consumption, L/100 km (for Kia Carens 2008)— city— highway— combined | 10.8-6.6-8.1 |
Engine lifespan, km | ~350 000 |
Weight, kg | 134.3 |
