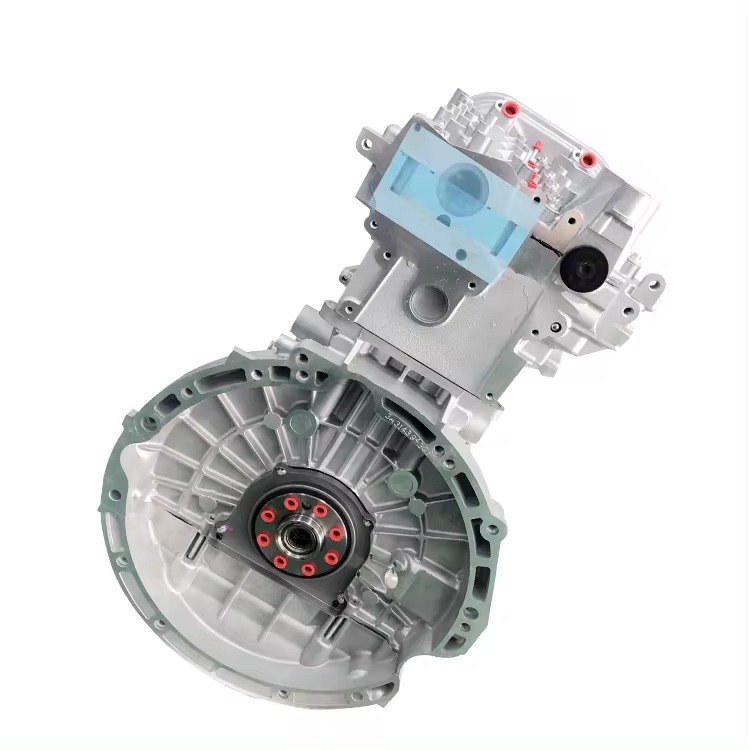

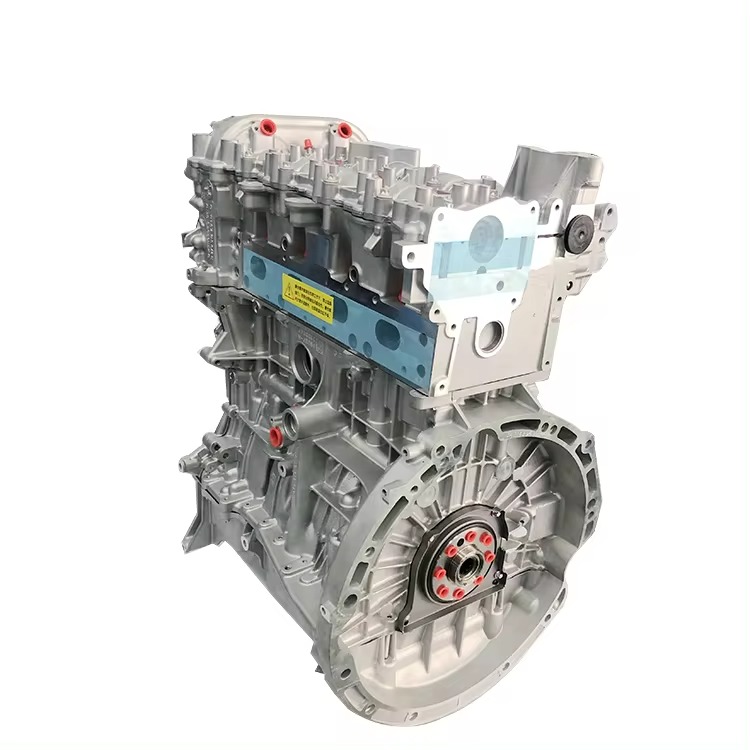

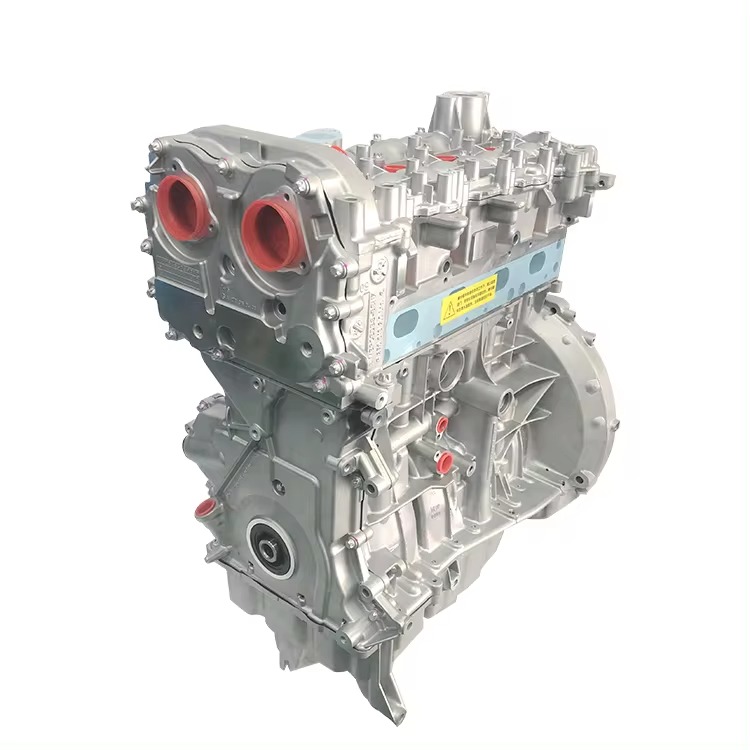

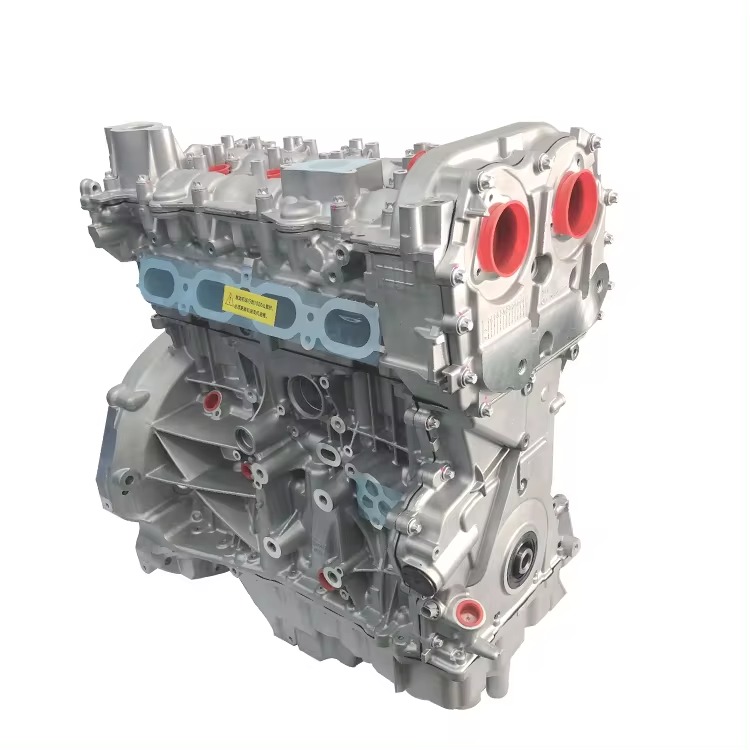

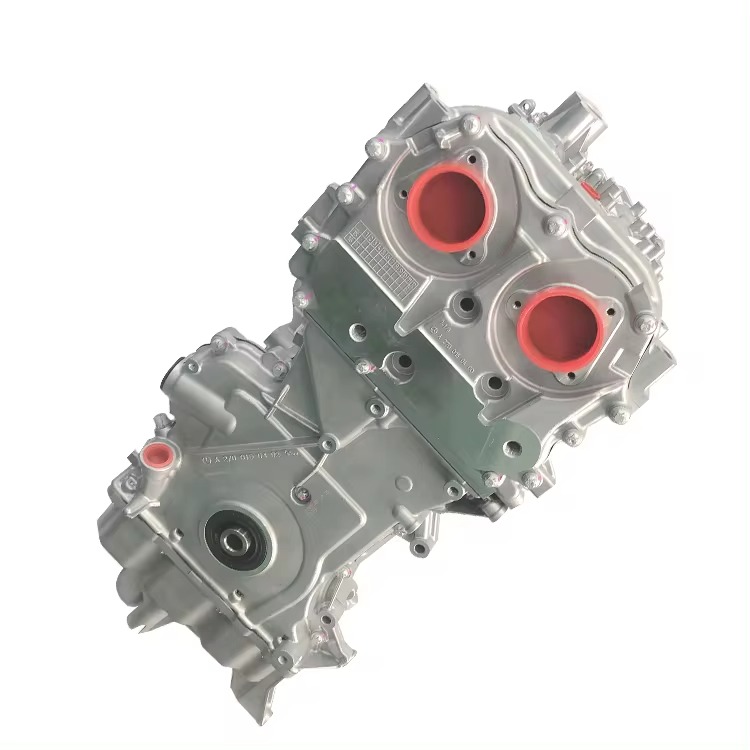

OEM Mercedes Benz M270.910 2.5L Gasoline Motor Engine For Mercedes Benz Auto Accesorios Automobile Engine
R4 Mercedes
engines: M102, M111, M133, M139, M166, M200, M254, M260, M264, M266, M270, M271, M274, M282.
Please email or add business whatsapp for a quote.
In 2011, a new series of 1.6 and 2.0-liter gasoline power units debuted, which differed in piston stroke, and the engines also had several boost options. The design is quite modern: a 4-cylinder aluminum block with cast-iron sleeves and an open cooling jacket, an aluminum 16-valve cylinder head with hydraulic lifters, a direct fuel injection system with piezo injectors, phase shifters on two camshafts, an IHI AL0070 or IHI AL0071 turbocharger with an air intercooler and a timing chain drive. Also noteworthy is the variable displacement oil pump and electronic thermostat.
1.6-liter engine modifications were optionally equipped with a Camtronic intake system, and 2.0-liter versions had a Lanchester counterbalance mechanism to reduce vibrations.
The Gasoline Motor M270.910 2.5L Engine was installed on:
- For Mercedes A-Class W176 in 2012 – 2018;
- For Mercedes B-Class W246 in 2011 – 2018;
- For Mercedes CLA-Class C117 in 2013 – 2018;
- For Mercedes GLA-Class X156 in 2013 – 2019;
- For Infiniti Q30 1 (H15) in 2015 – 2019;
- For Infiniti QX30 1 (H15) in 2016 – 2019.
| Production years | 2011-2019 |
| Displacement, cc | 1595 (M 270 DE 16 AL red)-1595 (M 270 DE 16 AL)-1991 (M 270 DE 20 AL) |
| Fuel system | direct injection |
| Power output, hp | 102 – 122 (M 270 DE 16 AL red)-156 (M 270 DE 16 AL)-156 – 218 (M 270 DE 20 AL) |
| Torque output, Nm | 180 – 200 (M 270 DE 16 AL red)-250 (M 270 DE 16 AL)-270 – 350 (M 270 DE 20 AL) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 73.7 (M 270 DE 16 AL red)-73.7 (M 270 DE 16 AL)-92 (M 270 DE 20 AL) |
| Compression ratio | 10.3 (M 270 DE 16 AL red)-10.3 (M 270 DE 16 AL)-9.8 (M 270 DE 20 AL) |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | yes |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 5.8 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Mercedes A 250 2015)— city— highway— combined | 7.9-4.9-6.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 137 |
