BMW N57D30 Engine
The N57D30 is a structurally robust 3.0-liter inline six-cylinder turbocharged diesel engine from BMW. It is well known for its strong power output, excellent fuel efficiency, and smooth power delivery. This engine is widely used in BMW 3 Series, 4 Series, 5 Series, 7 Series, and X Series models.
The engine features an aluminum cylinder block, forged crankshaft, and rear-mounted timing chain design. However, as mileage increases, certain maintenance issues may arise, including turbocharger systems, EGR coolers, and oil leaks. At the same time, through modifications and tuning, the N57D30 can further unleash its strong performance potential.
Main Features and Versions
Engine Type
- Inline six-cylinder diesel engine
- Aluminum cylinder block
- Cast iron cylinder liners
- Rear-mounted timing chain
Power and Torque
Depending on the tuning version, power output ranges approximately from 200–250 horsepower
High-output / M Performance versions can reach over 300 horsepower
Engine Versions
- N57D30A: Standard version
- N57D30B: Twin-turbo version
- N57D30C: Triple-turbo M Performance version
Fuel System
- Advanced fuel injection system
- Equipped with piezoelectric injectors, improving fuel efficiency and throttle response
Common Vehicle Applications
BMW 3 Series
E90 / F30: 330d, 335d
- BMW 4 Series
F32 / F36: 430d - BMW 5 Series
F10: 530d, 535d - BMW 7 Series
F01 / F02: 730d - BMW X Series
X3, X5 (such as xDrive30d, xDrive35d)
Overall Reliability
With proper maintenance, the engine has a long service life
Regular oil changes are especially critical
Rear-Mounted Timing Chain
Replacement cost is higher than the previous M57 engine
However, durability is good and typically reaches 250,000–300,000 km
Modification and Tuning Potential
Performance Upgrades
- Intercooler upgrades
- High-flow downpipe
- Custom ECU tuning , significantly increasing power
Hybrid Turbochargers
Suitable for users seeking extreme performance
With complete supporting modifications, power can reach 500+ horsepower
Common Modifications
- EGR / DPF / Swirl Flap deletes
- Improved intake and exhaust airflow
- Increased reliability, especially for performance tuning applications

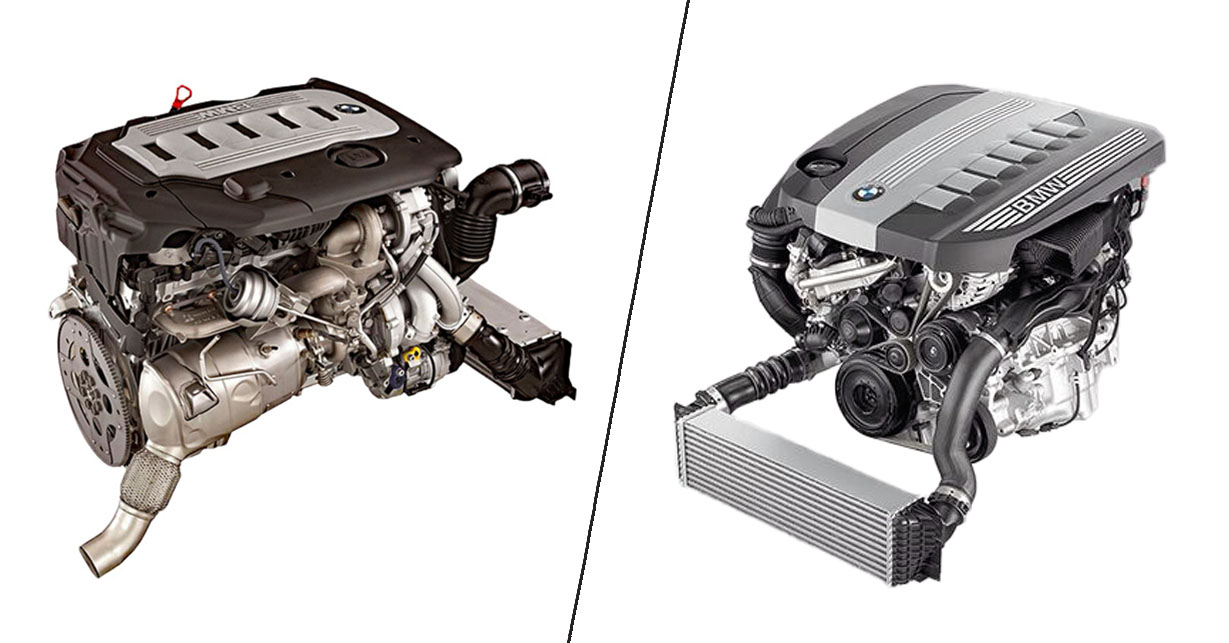

M57 vs N57 Comparison – Which One Is Better?
Among engines of the same category, M57 vs N57 is a topic of frequent discussion.
There are many generalized opinions about these two engines.
1. About the M57
The M57 has been installed in vehicles since 1998, and it continued to be updated and improved until 2013, making it increasingly reliable. It went through the transition from iron block to aluminum block (M57B30 and M57B30TU2).
Later versions, such as the one in my 325D (equipped with the M57B30TU2 engine), also removed swirl flaps.
Honestly, if you can find a later-version M57 engine, it is almost the best choice, as it has stood the test of time and all major weaknesses have been improved.
2. About the N57
The N57 features a more complex fuel injection system. Due to higher efficiency requirements for diesel engines, it operates under higher pressures.
Therefore, its weak points still need to be revealed over time. Although Google now points out that the most common issues are twin turbochargers, diesel high-pressure fuel pumps, and several other minor problems, these repairs are quite expensive.
BMW engines require regular oil changes and should be treated as preventive-maintenance engines.
If you use OE/OEM parts, in most cases, you will never need to replace them again.
So, if your budget is limited and this is your first car, choose the M57.
If you have a trustworthy mechanic and some extra cash for potential repairs, choose the N57.
Common Problems
Common issues with the BMW N57D30 generally revolve around diesel-specific problems such as carbon buildup, DPF clogging, EGR valve failure, as well as maintenance of precision components like high-pressure fuel pumps and injectors.
The key lies in regular maintenance, using high-quality diesel fuel and engine oil, and promptly addressing issues with exhaust aftertreatment systems such as catalytic converters to maintain performance and lifespan.
Common Issues of the N57D30 Engine
Carbon Buildup
Diesel engines generate carbon deposits, especially in the intake ports, EGR valve, and turbocharger blades. Over time, this affects intake efficiency and EGR operation, leading to power loss and increased fuel consumption.
EGR Valve and Cooler Failure
The EGR system is prone to carbon blockage, causing the EGR valve to stick or the EGR cooler to leak, affecting combustion and emissions.
DPF Clogging (Diesel Particulate Filter)
The DPF filters particulate matter. Long-term operation, frequent short trips, and low-speed driving can cause clogging, requiring regeneration (high-temperature burn-off) or replacement.
High-Pressure Fuel System Issues
High-pressure fuel pumps and injectors are precision components and are sensitive to fuel quality. Wear or clogging can cause hard starting, unstable idling, and power loss.
Turbocharger Issues
Bearing wear, vane sticking (due to carbon buildup), or boost leaks can reduce turbo efficiency.
NOx Sensor and Oxygen Sensor Failure
These affect exhaust aftertreatment and ECU control of air-fuel ratios.
Chain / Gear Wear
Although BMW timing chains are durable, prolonged high-load operation can still lead to wear of the chain or tensioner.
Maintenance and Service Recommendations
Regular Deep Maintenance
Follow manufacturer service intervals, use high-quality diesel fuel (avoid low-quality fuel), and select premium diesel engine oil.
Carbon Cleaning
Perform professional intake and EGR carbon cleaning every 50,000–80,000 km (physical or chemical methods).
DPF Regeneration and Monitoring
Monitor DPF regeneration status, avoid frequent short trips, and clean or replace the DPF when necessary.
Fuel System Maintenance
Use fuel additives to clean injectors or regularly inspect/replace injectors and high-pressure pumps.
EGR / DPF Inspection
Pay attention to engine warning lights or power loss and promptly inspect the EGR valve, EGR cooler, and DPF.
Professional Repair
Due to the complexity of the N57D30, involving high pressure and high temperatures, repairs should be carried out by experienced diesel specialists using dedicated diagnostic tools.
Overall, the N57D30 is a high-performance diesel engine, but it has strict requirements for fuel quality and maintenance. The key lies in preventive maintenance, minimizing carbon buildup, and ensuring fuel quality to reduce failures and fully enjoy its strong power and fuel efficiency.
Yeahengine Remanufactured Engines — Giving Engines a New Life
Remanufactured engines are not a new concept; they have existed for decades and offer clear advantages:
their price is typically only half of a brand-new engine, while performance can even surpass that of a new engine.
Understanding vehicle owners’ needs and current market conditions, Yeahengine is committed to introducing advanced remanufacturing technology, allowing more customers to benefit.
In terms of quality, Yeahengine adopts the same processes and technologies as the original factory, strictly inspecting and restoring all components to ensure that every remanufactured engine matches original standards.
Through continuous innovation in remanufacturing technology, Yeahengine gives engines a new lease on life, allowing vehicle owners to extend vehicle lifespan in a more economical way and effectively solve long-term ownership cost challenges.

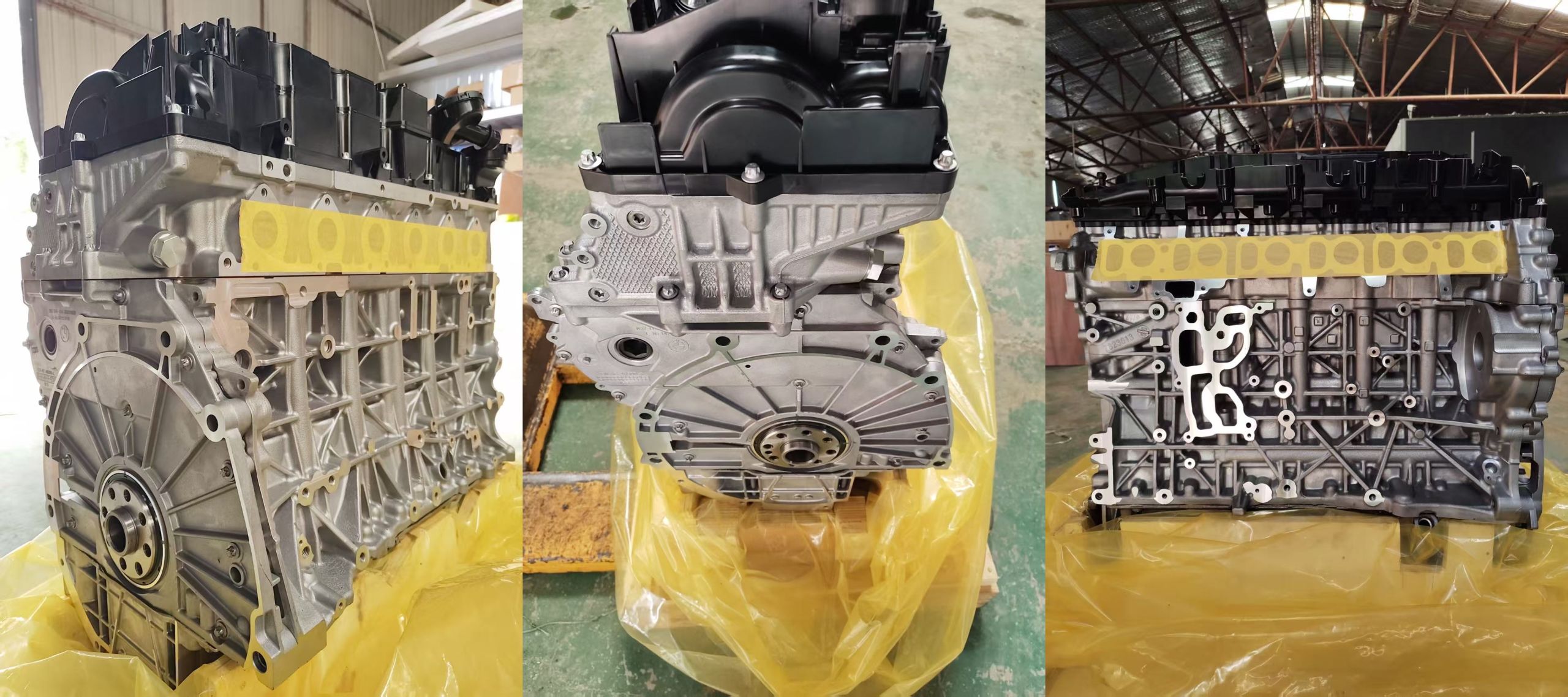

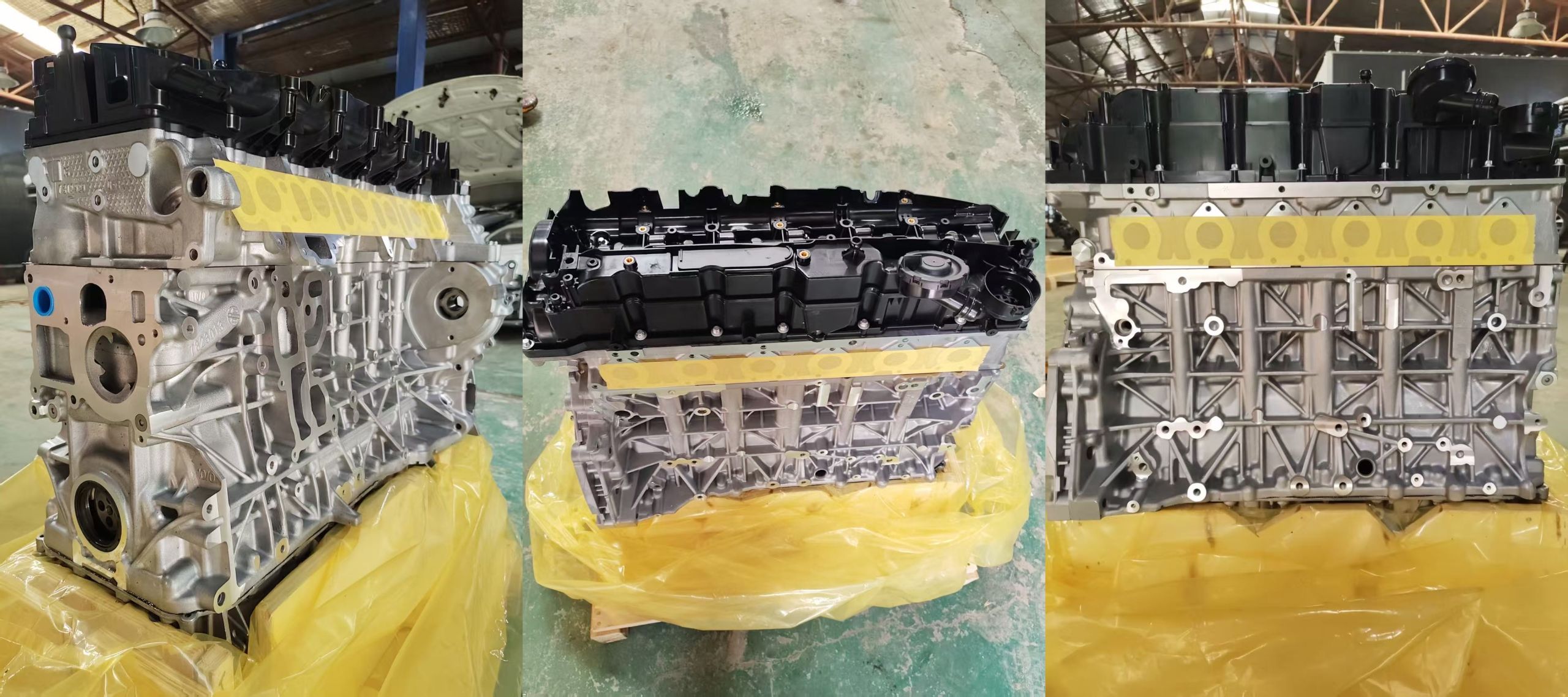

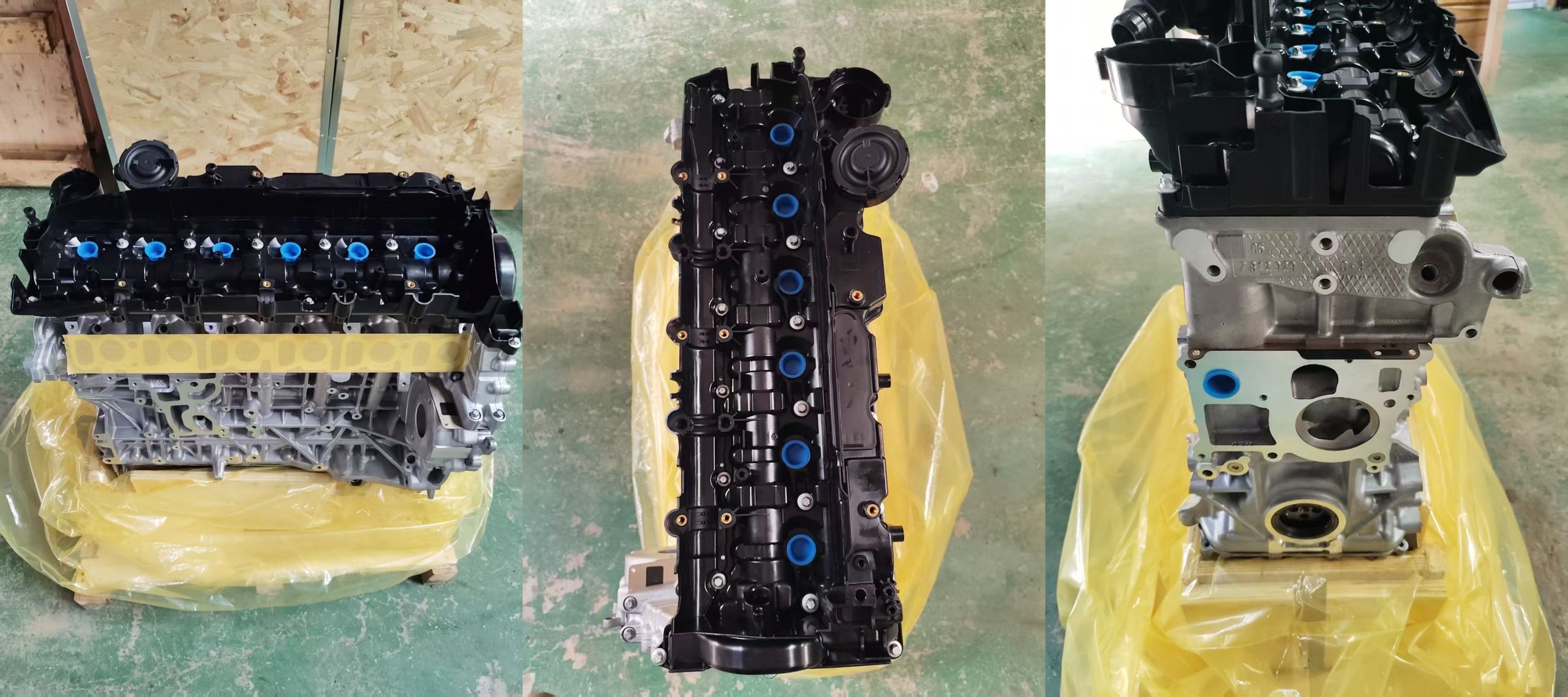

Our remanufactured N57D30 engines strictly follow original factory processes for rebuilding and testing, ensuring consistent quality and dependable performance.
All engines are supplied with warranty coverage for complete peace of mind.
